INTRODUCING THE NEWEST TOOL FOR AN ALREADY IMPRESSIVE BELT.

EXPANDING THE WESTERN STAR LINE OF NEXT GEN VOCATIONAL TRUCKS.

Our X-Series trucks aren’t just the best trucks we’ve ever built, they’re the best trucks anyone has ever built. Like the 49X before it, the 47X is part of a family that was built from the ground up to bring toughness into the modern age with an impressive collection of engineering, technology and more than half a century of experience building trucks that take on any challenge, anywhere.

The 47X extends the reach of the X-Series into even more vocational applications, with a number of new features including a shorter hood and and efficient 111" BBC. This compact configuration is ideal for applications that require optimized equipment packaging to meet local overall vehicle length requirements and applications that need to adhere to bridge laws, such as concrete mixers or dump trucks. So, no matter what job you need to do, there’s now another purpose-built tool to do it. Break new ground with the 47X.

BUILT WITH ONE GOAL IN MIND

We designed and engineered our X-Series trucks to be the best vocational trucks on the market. The 47X is no exception. To achieve that goal, the 47X had to meet seven benchmarks we established at the very beginning, and we made sure it delivered on every one of them before we offered it to you.

Designed for upfit

DESIGNED FOR
UPFIT

Superior operator comfort

SUPERIOR
OPERATOR
COMFORT

Maximized uptime

MAXIMIZED
UPTIME

Legendary durability

LEGENDARY
DURABILITY

Pupose-built

PURPOSE-BUILT

Western Star 47X
Best-in-class safety

BEST-IN-CLASS
SAFETY

Proven powertrain options

PROVEN
POWERTRAIN
OPTIONS

47X SPECIFICATIONS

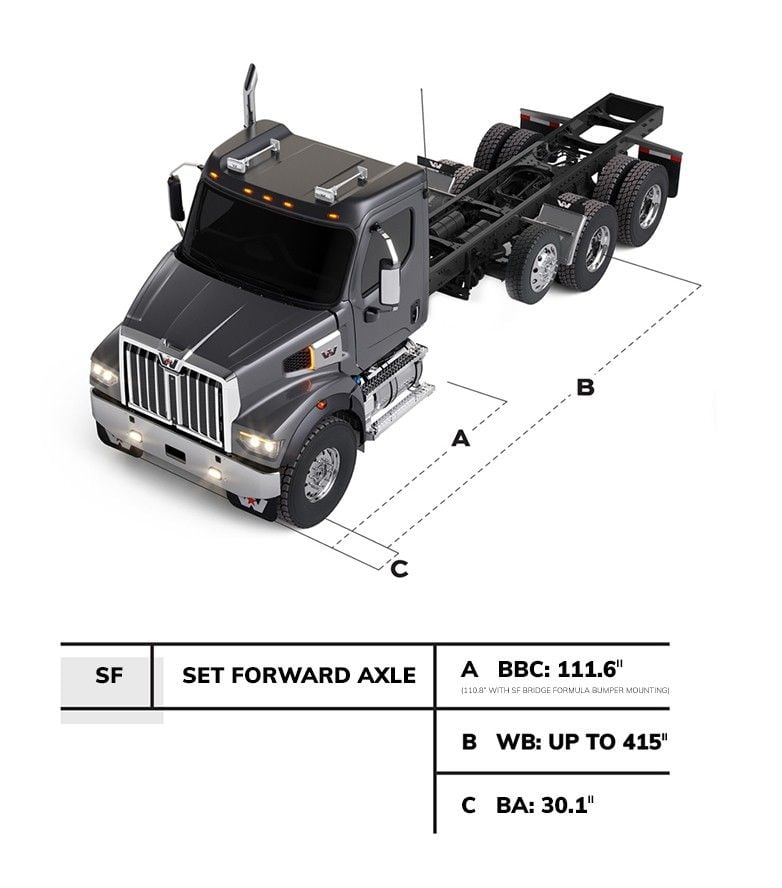

Western Star 47X SF Specifications
Western Star 47X SB Specifications

SLEEPER OPTIONS

Specifications

CAB

  • X-Series steel-reinforced aluminum cab with X-Series steel door
  • Trench-style low roof with lowered center section for optimal packaging of over cab equipment
  • One-piece roped-in windshield
  • Optional single or high-visibility three-piece rear window

INTERIOR TRIM LEVELS

  • X-Series Base
    • Mordura cloth seat
    • Vinyl sleeper upholstery
    • Standard insulation
    • Standard LED cab lighting
    • Black finish steering wheel switches
    • Black finish dash gauge bezels
    • Carbon with black trim accents
  • X-Series Premium
    • Laredo leather seats
    • Upgraded sleeper upholstery
    • Premium insulation
    • Premium LED cab lighting
    • Bright finish steering wheel switches
    • Bright finish dash gauge bezels
    • Premium teak trim

INTERIOR COLORS

  • Quarry Grey
  • Charcoal Black
  • Timber Brown (available on Premium Package only)

HOOD

  • Impact-resistant, durable, lightweight molded resin hood with sloped high-visibility design
  • ISO TECH Hood Suspension System
  • Standard with locking hood strut

GRILLE

  • Radiator-mounted steel grille with stainless steel surround

HVAC

  • Best-in-class HVAC with 5 face outlets, 4 floor outlets, 2 side window defrost outlets and 10 blower speeds
  • Available only on sleepers, optional Idle-Free Dual HVAC that provides up to 10 hours of cooling or 34 hours of heating when parked

AIR INTAKE

  • Engine mounted air intake, plus optional hood-mounted pre-cleaner deliver improved dust capacity

ENGINE

  • Detroit® DD13® Gen 5, 370-525 HP, 1,250-1,850 lb-ft
  • Cummins L9, 260-380 HP, 860-1,250 lb-ft
  • Cummins X12, 350-500 HP, 1450-1700 lb-ft

TRANSMISSION

  • Detroit® DT12®-V AMT
  • Allison 3000 and 4000 Series Automatics
  • Eaton Fuller 10- 13- 18-speed; 8LL and 9ALL Manuals
  • Eaton Ultrashift PLUS and Endurant AMT

POWER TAKE-OFFS (PTOS)

  • Intuitive and simple to use PTO control system that makes programming easy
  • FEPTO and REPTO available
  • Factory installed transmission PTO

FRONT AXLE

  • Detroit® single 12,000-23,000 lbs
  • Meritor single 12,000-22,000 lbs

REAR AXLE

  • Detroit® single 23,000 lbs
  • Detroit® tandem 40,000-46,000 lbs
  • Dana tandem 46,000-50,000 lbs
  • Meritor single 21,000-30,000 lbs
  • Meritor tandem 40,000-58,000 lbs
  • Meritor tridem 69,000-78,000 lbs

FRONT SUSPENSION

  • Flatleaf 14,600-23,000 lbs
  • Flatleaf (Tandem) 40,000 lbs
  • Taperleaf 12,000-20,000 lbs
  • Taperleaf (Tandem) 40,000 lbs

REAR SUSPENSION

  • AirLiner® single 21,000-23,000 lbs
  • AirLiner® tandem 40,000-46,000 lbs
  • AirLiner® tridem 69,000 lbs
  • Chalmers tandem 40,000-70,000 lbs
  • Flatleaf single 23,000-30,000 lbs
  • Hendrickson tandem 40,000-70,000 lbs
  • Neway single 26,000 lbs
  • Neway tandem 46,000-52,000 lbs
  • Neway tridem 69,000-78,000 lbs
  • TufTrac tandem 40,000-52,000 lbs

BRAKES

  • WABCO® 4S/4M and 6S/6M Anti-lock Braking System (ABS) with and without traction enhancement
  • Air Disc Brakes

ACTIVE SAFETY

  • Detroit Assurance® suite of safety systems including: Active Brake Assist 5, Adaptive Cruise Control to 0 MPH, Side Guard Assist, Tailgate Warning, Lane Departure Warning, Automatic Headlights/Wipers and Intelligent High Beams, Brake Hold Mode, Traffic Sign Display and Active Speed Intervention, available with Detroit® engines
  • WABCO® OnGuard including collision mitigation and adaptive cruise control, optional with Cummins engines

FRAME

  • Single-channel RBM @ 1.8-3.8MM inch-lbs
  • Inner C-channel reinforced RBM @ 4.4-5.5MM inch-lbs
  • 8"-30" parent rail front frame extensions options available

BUMPERS

47X offers three bumper styles in various finishes and thicknesses, as well as boxed-in bumper with an optional grille guard for logging applications. All 47X bumpers are tapered at the wheel ends for ground clearance and weight savings

  • Standard 1/8" stainless steel vocational
  • Optional 3/16" painted steel
  • Optional 1/4" plain or polished aluminum
  • Optional 5/16" bright steel severe service
  • Optional 3/8" painted steel severe service
  • Optional 1/4" painted or bright steel logger

FRONT TOW DEVICES

There are a number of towing device options mounted directly to the front frame head for increased strength and durability, with ratings from 80,000-140,000 lbs

  • Dual Removable Tow Hoops, 80,000 lbs
  • Center Tow Pin, 80,000 lbs
  • High Capacity Center Tow Pin, 140,000 lbs

FUEL TANKS

  • Aluminum 25" cylindrical, plain or polished
  • LH 60-150 gallon (227-568 liter)
  • LH 60, 80 and 90 gallon rectangular tanks

Optional raised fuel tank mounting

  • RH 60-, 70-, 80-, 100-, 120-, 150-gallon (227-, 265-, 303-, 379-, 454-, 569-liter)
  • Standard forward mounting; optional aft mounting
  • LH and RH split fuel/hydraulic tank options available
  • LH and/or RH auxiliary fuel supply and return ports available

DEF TANK

  • 8-, 13- and 23-gallon (23-, 49- and 87-liter)
  • Standard forward mounting
  • Optional LH or RH aft mounting

UPFIT EFFICIENCY FEATURES

  • All-new QuickFit Interface System
    • Easier to integrate truck equipment with the vehicle's electrical power and communication sources
    • Advanced multiplexed electrical system for easy Truck Equipment Manufacturer (TEM) interface, programming and power access
    • Auxiliary in-cab backwall mounted E-Vault available, which houses:
      • QuickFit Programmable Modules
      • QuickFit Programmable Interface Connector
      • TEM-specific power distribution module
      • High-current power access
  • Multiple clear back-of-cab chassis configurations
  • Updated standard air dryer mounting location delivers clear back-of-cab
  • Standard in-cab battery mounting location with optional mounting on frame or between rails
  • Up to 24 programmable multiplexed, 4 hard-wired and 2 pneumatic switches

THE WESTERN STAR 47X

Western Star 47X Concrete Mixer
Concrete Mixer
Western Star 47X Dump Truck
Dump Truck
Western Star 47X Crane Truck
Crane Truck
Western Star 47X SnowPlow
SnowPlow

BREAK NEW GROUND WITH THE ALL-NEW 47X
